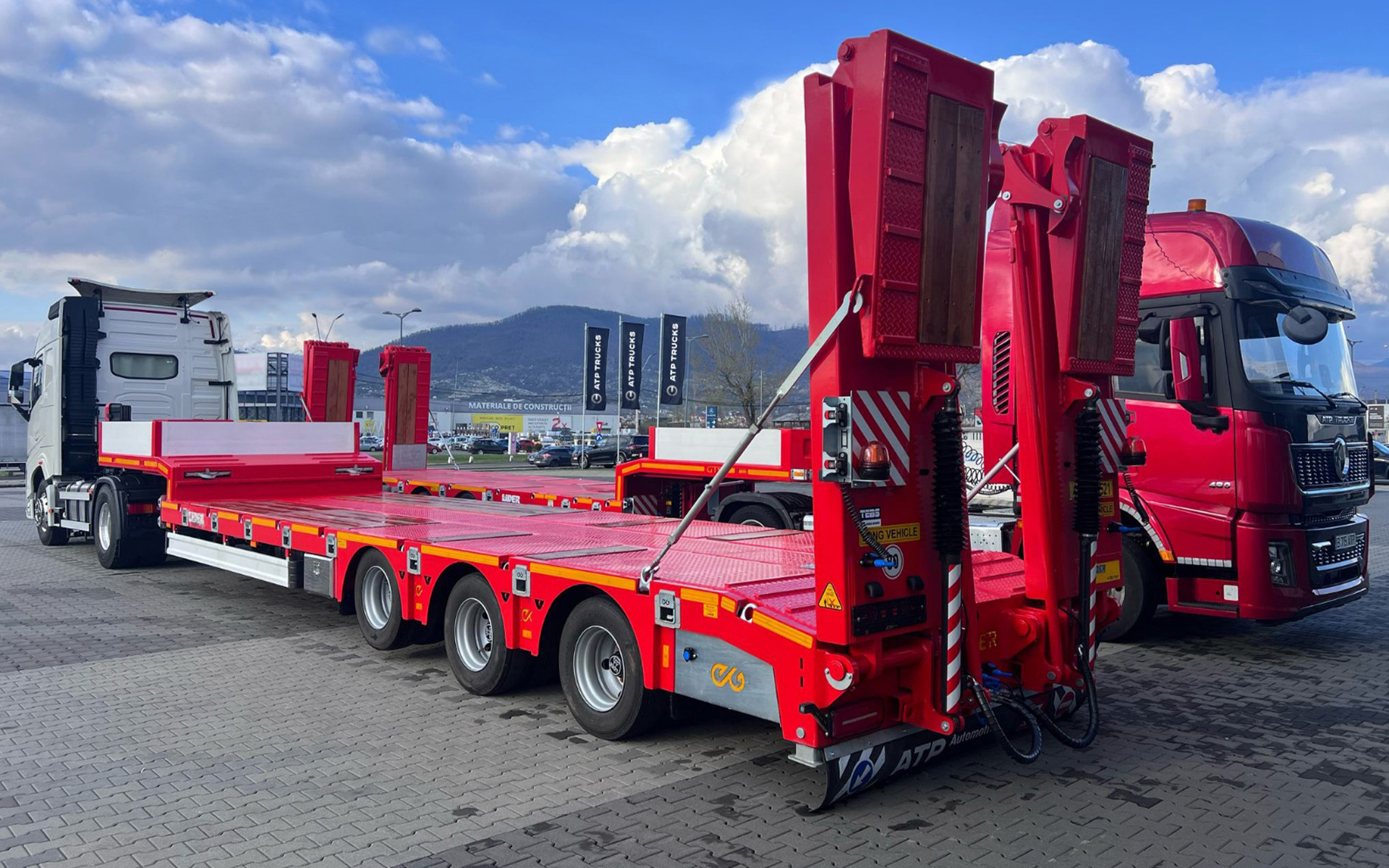

3 AXLE SEMITRAILER
TECHNICAL DETAILS
Length: 9278 mm
Total width: 2530 mm
Width extension: 300 mm on each side
Load capacity: 45,000 kg
Chassis made of high-strength steel according to ST52
3 axles with a 12-ton capacity
First axle liftable
Third axle is steering
12+1 tires and rims, size 235/70 R17.5
2 mudguards
Electric power supplied through 2 seven-pin connectors from the vehicle
Rear lights, signaling, marker lights, license plate light, rotating light
LED lights
BRAKING SYSTEM
EBS (Electronic Brake System)
Brake chambers with automatic adjustment
Drum brake system
LOADING PLATFORM
Made of 10 mm thick steel plate, with an anti-slip pattern
Sides: Above the wheels, there are steel plates with an anti-slip pattern and a wooden floor (wood is not covered by the warranty)
Additional anchoring hooks on the platform and swan neck
KING-PIN
Made of forged steel (42 Cr Mo4), with high resistance to tension and breakage, according to 2″ SAE/DIN and 3.5″ SAE/DIN standards, and allows for easy replacement with bolt connections.
1200 mm height
STANDARD ACCESSORIES
Side underrun protection
2 x Wheel tracks
1 x Spare wheel with support
1 x 60 l water tank, made of stainless steel
1 x Speed limit stickers (60, 70, 80)
Rear underrun protection bar
OTHER EQUIPMENT
2 hydraulic ramps, width 800 mm
Hydraulic rear support legs
Blasting, primer + 2 layers of acrylic paint
Color: as per customer request
Mechanical legs, 24 tons
Delivery time: approx. 1-3 months from firm order
